Two-way radios and walkie-talkies are staple communication tools in many industries. However, compatibility with two-way radio communication equipment can be a significant issue with so many different manufacturers, models, types, and frequencies available. Feedback from our clients shows that many of them have experienced radio compatibility issues, resulting in lost productivity and revenue. It can be confusing to determine whether different radio devices will be compatible. In this article, we will explore the key factors that affect radio compatibility and explain how to choose radios or walkie-talkies that will work together seamlessly.
Key Factors for Connecting Walkie Talkies
Different handheld radios or different walkie-talkies from different brands can work together. But they must have certain things in common: frequencies, channels, privacy codes, and whether they use digital or analogue technology.
Frequency Band
The frequency band is the most critical factor in determining compatibility between walkie-talkies and radios. There are several frequency bands used for two-way radios, and although devices operating in the same frequency range can communicate with each other, those operating on different frequency bands cannot. The radio frequency bands are VHF (Very High Frequency) and UHF (Ultra High Frequency), plus there are special use frequencies in the UHF band for GMRS (General Mobile Radio Service) and FRS (Family Radio Service).
- VHF radios operate within a frequency band of 30 to 300 MHz and are better suited for outdoor use in open areas. However, because channels are limited, they can potentially suffer more from interference.
- UHF radios operate within a frequency band of 300 MHz to 3 GHz and are ideal for urban areas and indoor events. They can penetrate obstacles more easily and have more channels available, so they are less prone to interference. However, their range is limited compared to VHF.
- GMRS (General Mobile Radio Service) radios operate on specific frequencies in the UHF range (462 to 467 MHZ band), which the Federal Communications Commission (FCC) designates. Can be used for long range communication by adding a repeater.
- FRS radios (Family Radio Service) are for personal use and work in the same 462 to 467 MHZ band as GMRS radios but are lower power. These are license free radios as the power output is lower than GMRS.
- Multi-use radio service (MURS) a simple, low-power radio operating in a narrow selection of the VHF band. With a power limit of 2 watts MURS walkie talkies are license free.
- CB radios operate over 40 channels in a narrow VHF frequency range set aside by the FCC for personal use.

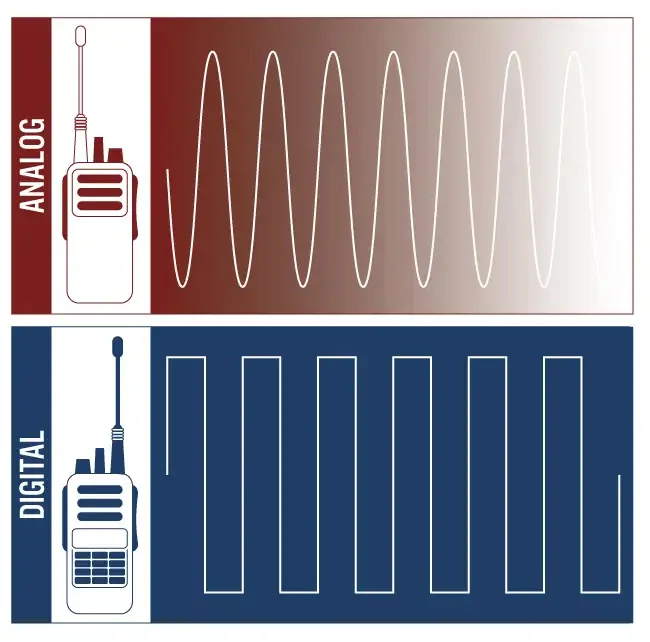

Analog vs Digital: Another Factor to Consider
There are two methods for radio signal transmission, analog and digital, each of which requires completely different hardware and is not compatible with the other even if using the same frequency. Digital radios are more expensive but offer additional security features and enhanced sound quality.
Security Keys and IDs: Ensuring Compatibility with Private Communications
Many two-way radios use security keys and IDs to provide private communications. These security features are available on digital and analog radio systems, but digital systems greatly enhance security. They use radio encryption to scramble the signal, making it difficult for unauthorized devices to intercept the transmission and overhear conversations. However, devices with different security keys and ID systems from various manufacturers are unlikely to be compatible with each other.
Can Different Brands Work Together?
They can, but there are some caveats. Devices from different manufacturers can work together if they use the same type of signal transmission, operate on the same frequency band, and use the same security/encryption systems. However, some manufacturers may use proprietary technologies that make their devices incompatible with other brands even when they share frequency bands and types of signal transmission. For example, our clients have reported that Motorola walkie-talkies using their MOTOTRBOstandard are incompatible with other manufacturers’ radios.
What Types of Devices are Not Compatible?
Some radio devices will simply not be compatible. For example:
- FRS radios are not compatible with GMRS radios
- Analog radio devices will not be compatible with digital radios
- Devices with different security keys and IDs may not be able to communicate with each other
- Radios using different frequency bands will not be compatible
If you are buying or hiring radio equipment to work with an existing radio communication system, you must ensure compatibility by providing the dealer or manufacturer with details of your existing radio devices. At Plant-Tours.com, we offer an on-site consultation to help you select compatible devices and get them all set up and working together seamlessly.
How to Pair Walkie Talkies
Pairing walkie-talkies (aka push-to-talk radios) is a relatively straightforward process if the handsets are compatible. The pairing process can be completed in a few simple steps:
- Ensure Compatibility: Check with the manufacturer or dealer to ensure compatible radios.
- Frequency: Choose channel numbers not already used by other devices in the area and set both walkie-talkies to the same channel.
- CTCSS Tone (If applicable): If the walkie-talkies have a CTCSS (Continuous Tone-Coded Squelch System) or DCS (Digital Coded Squelch) feature, ensure the tone frequency and codes are the same on both devices.
- Press the Pairing Button: On most radios, this button is usually labeled “Pair” or “Sync.” Simply press and hold the pairing button until the LED light starts to flash.
- Press the Pairing Button on the Second Device: Within a few seconds of pressing the pairing button on the first radio, press and hold the pairing button on the second radio until the LED light also starts to flash.
- Wait for the Radios to Pair: The walkie-talkies should automatically pair. This usually takes a few seconds, and once paired successfully, the LED lights on both devices should stop flashing and remain steady.
- Test the Connection: Test if they are paired correctly by transmitting a message from one walkie-talkie to the other. If paired correctly, you should be able to hear the message clearly on the receiving device.
Before pairing radios, always ensure the handsets are fully charged or have fresh batteries. If you experience any issues during the process, try resetting the devices and starting again from the beginning.
Tips for Choosing Walkie-Talkies
In addition to ensuring compatibility, there are other important factors to consider when choosing walkie-talkies. First, determine the purpose of the radios and the type of environment in which they will likely be used and whether it is a business radio or for personal use. This can help when deciding on range, battery life, durability, and weatherproofing features. Durability and reliability are particularly important if radios are to be used in isolated areas with no cell phone reception. Next, consider the frequency type that best fits your needs, such as UHF or VHF. Range or power is the next consideration, with higher power giving further effective range. There are also a range of optional features that may be helpful, such as encryption and CTCSS. In addition to choosing equipment that can communicate seamlessly, learning how to use two-way radios effectively requires training and following the rules of radio etiquette. Radio licensing can also be an issue. For example, in the United States, the Federal Communications Commission regulates radio licensing, and depending on your location and frequency band, you may need a license to operate walkie-talkies.
If you are still trying to determine the compatibility of radio equipment or which radio equipment will work best in your environment, we recommend you take advantage of our free demo kit. This demo kit comes with a combination of headsets and radios, so you can try them out and find out which best suits your needs before committing to a purchase. You are not obligated to buy and no credit card is required. We even provide a complimentary return label so you can return the kit to us at the end of your trial for free.
Example Plant-Tours products

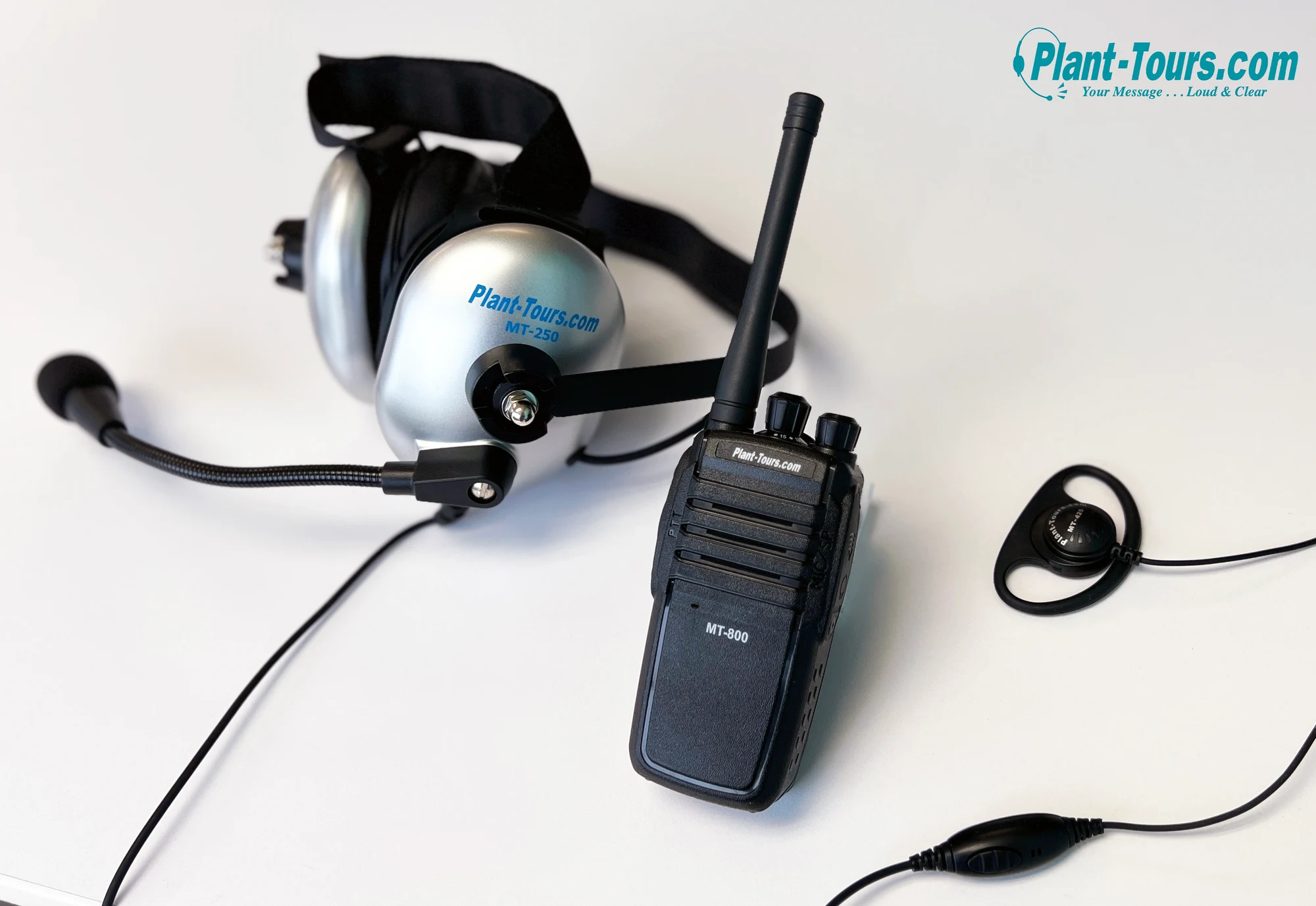

We offer a range of range of walkie talkies and accessory products designed to provide flexibility and compatibility for systems connecting groups between 5 and 1500. For example, our new premium MT-800 Transceiver offers ultra-quiet audio reception and rugged durability for even the most demanding industrial environments. It includes variable talk times, 16 channels, and pre-programmed private line codes. This unit was designed to be compatible with a range of headset & microphone options, charging stations, and other accessories. The MT-800 can be paired with our MT-250 Max-Noise Headset with complete ear protection for use in high-noise environments and compatible with hard hats, or for more discreet private communications, it can be paired with our lightweight MT-425 In-line Mic Earspeaker headset with lapel and collar clip, more suitable for use in events and security.
